Reinforcement Learning: The 3rd class of Learning Problems

All we have is state and action pairs!

Goal: To maximize future rewards over many time steps

Key concepts

Entity Description
Agent This is the thing that takes actions(A), A\(\in\) Action Space
Environment This is where the actions take place.

Deep RL algorithms:

  • \(\pi\) is known as the policy function
  • \(Q\) is known as the Q function, which is the expected total future reward an agent in state \(s\) can receive by doing an action \(a\). $$ R_t = r_t + \gamma r_{t+1} + \gamma^2 r_{t+2} + \dots\[3pt] Q(s, a) = \mathbb{E}[R_t|s_t, a_t] $$
Value Learning Policy Learning
Find \(Q(s, a)\) Find \(\pi(s)\)
\(a = \argmax_a Q(s, a)\) Sample $a \sim \pi(s) $

Deep Q Networks

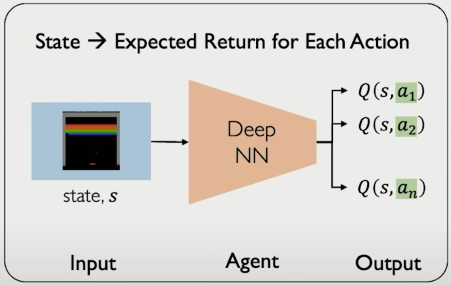

How can we use Deep Neural Networks to model Q-functions?

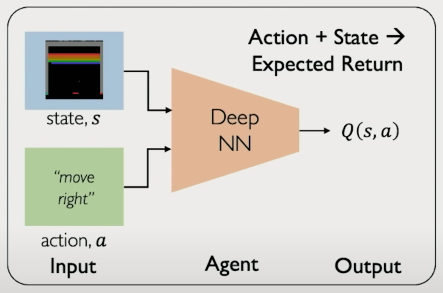

DQN diagram alt text

What if we tak all the best actions?

  • Maximize target return \(\rightarrow\) train the agent
  • Conidering that we want to train a Neural Network, we would need a target and a prediction value.

$$ target = r_t + \gamma \max_{a'}Q(s', a') \[3pt] predicted = Q(s, a) $$

\(\therefore\) The loss function could be just the mean squared loss.

$$

\mathcal{L} = \mathbb{E} \left[ \left| \left( r + \gamma \max_{a'} Q(s', a') \right) - Q(s, a) \right|^2 \right] $$

This is also known as the Q-Loss.

  • Use the NN to learn the Q-function and then use to infer the optimal policy, \(\pi(s)\). $$ \pi(s) = \argmax_a Q(s, a) $$
  • Send the action back to the environment and receive the next state.

Any Downsides?

  • Complexity:
  • Can model scenarios where action space is small and discrete.

  • Cannot handle continuous action space.

  • Flexibility:

  • Policy is deterministically computed based on the Q-function by maximizing the reward \(\rightarrow\) cannot learn stochastic policies.

To address these shortcomings, there is a new class o RL training algorithms: Policy Gradient Methods.

Policy Gradient

Directly optimize the policy \(\pi(s)\)

policy gradient with DNN computing probabilites instead of finding the action

  • We can sample from this probability distribution.

  • Ofcourse we need the output to have their sum be equal to 1.

  • What are the advantages of this formulation?

  • Now, we can deal with both discrete and continuous action space.

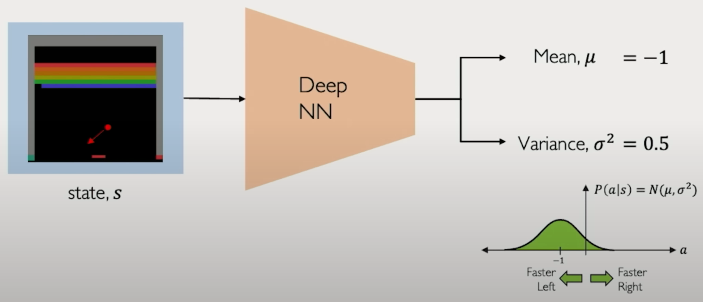

  • For example, like this. Continuous action space DNN for RL

Training Algorithm

def train():
    model = DNN() # could be a simple pytorch sequential nn

    for i in range(epochs):
        agent = init_agent()
        history = []
        while agent is not terminated(): # not ideal for using it in real world
            action, reward = model.predict(agent.state)
            his = [agent.state, action, reward]
            environment.apply(action)

            history.append(his)

        # loss = -log(P(a_t|s_t)) * R_t
        # weight update: w = w - ∇loss
        #                w = w + ∇log(P(a_t|s_t))R_t

        decrease prob..lity of actions that resulted in low reward      # this is just backpropagation
        increase prob..lity of actions that resulted in high reward     # this is just backpropagation
    return model
